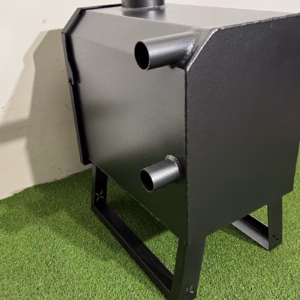

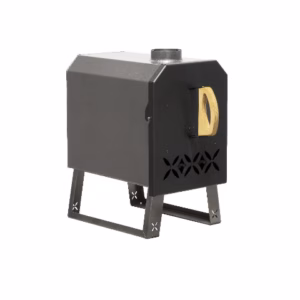

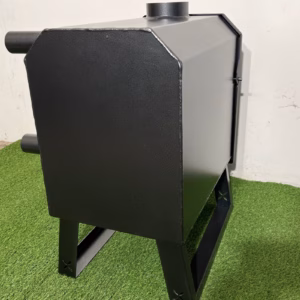

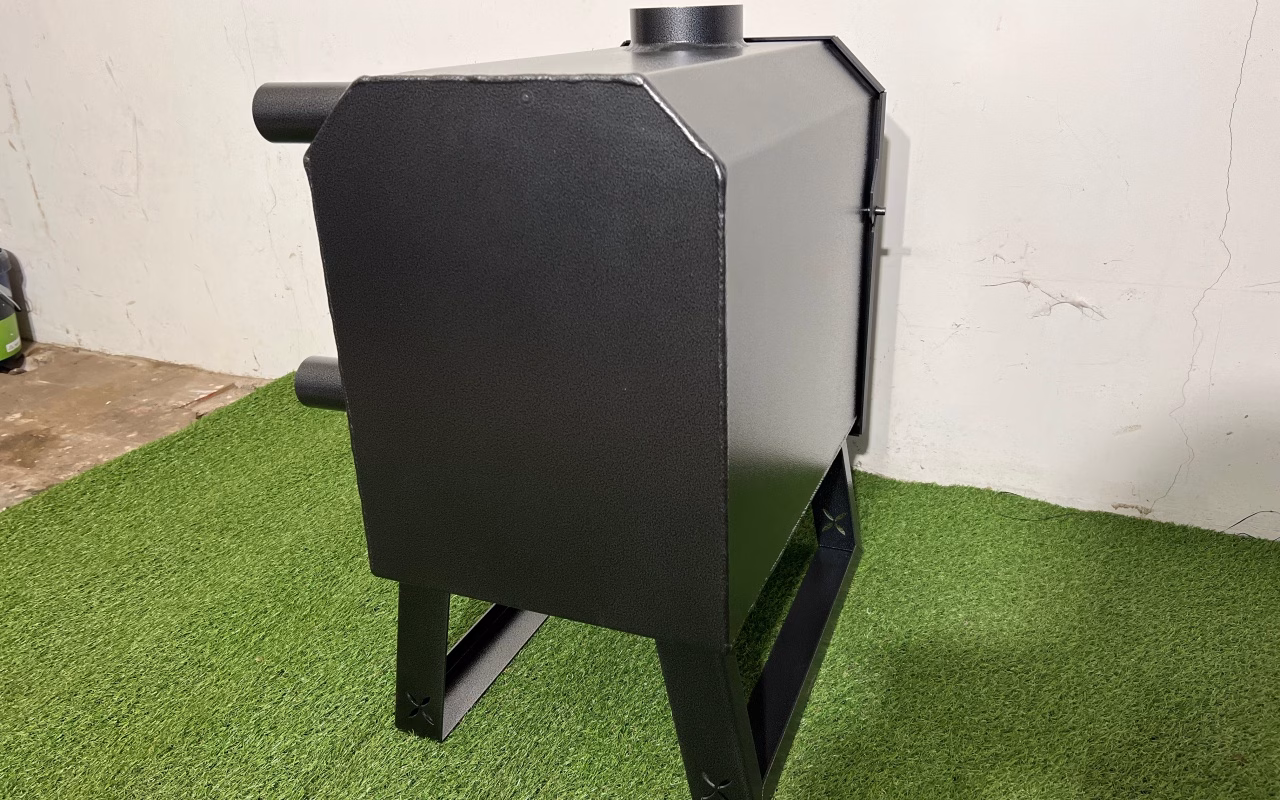

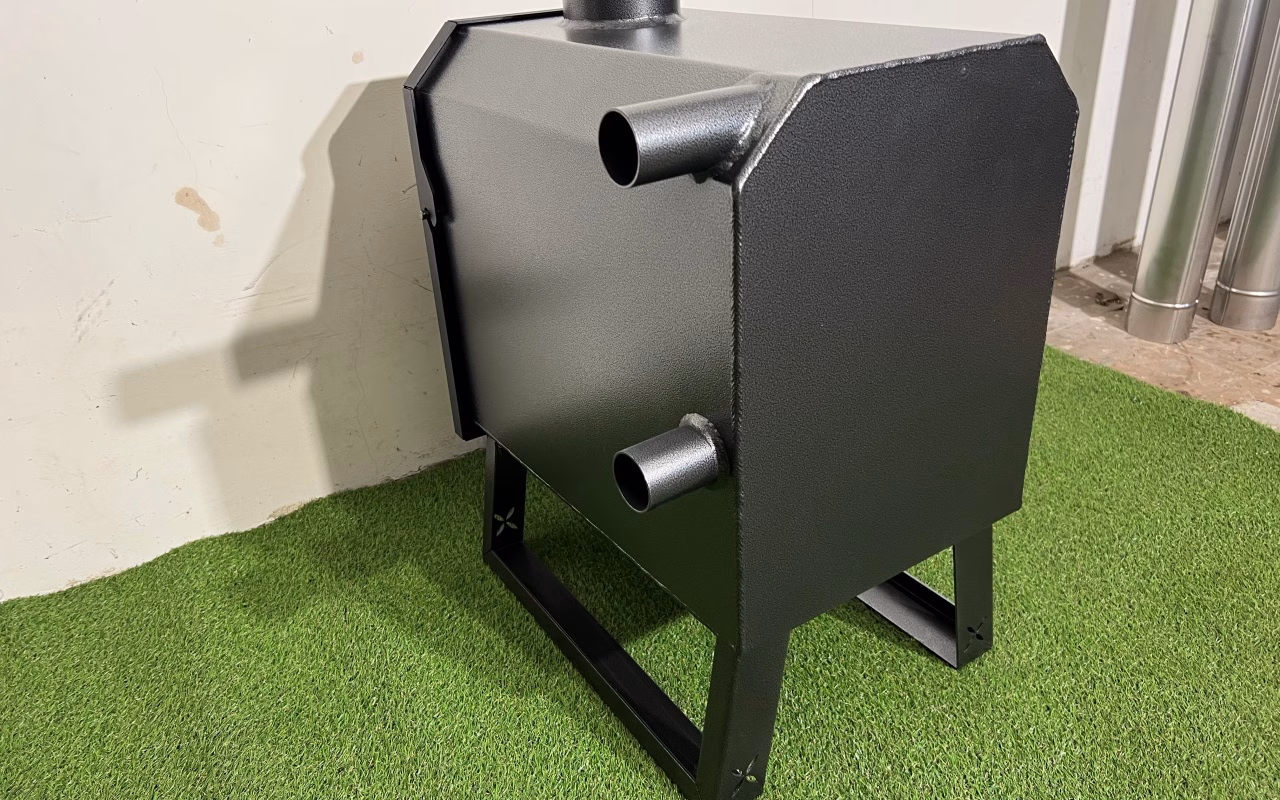

This external hot tub heater is suitable for hot tubs up to 170 cm. The water circulates between the stove and the hot tub using the principal of thermosiphon (the movement created by rising hot water) and eliminates the need for a circulating pump or electricity. The cold water flows in from the lower pipe of the stove and heated water flows back to the hot tub from the upper pipe of the stove. The hot tub heater is equipped with a 2m long stainless steel chimney. Chimney consists of two parts.
Details:
Model: Ignis-V35
Type: Wood burning
Material: Aluminum, seawater resistant

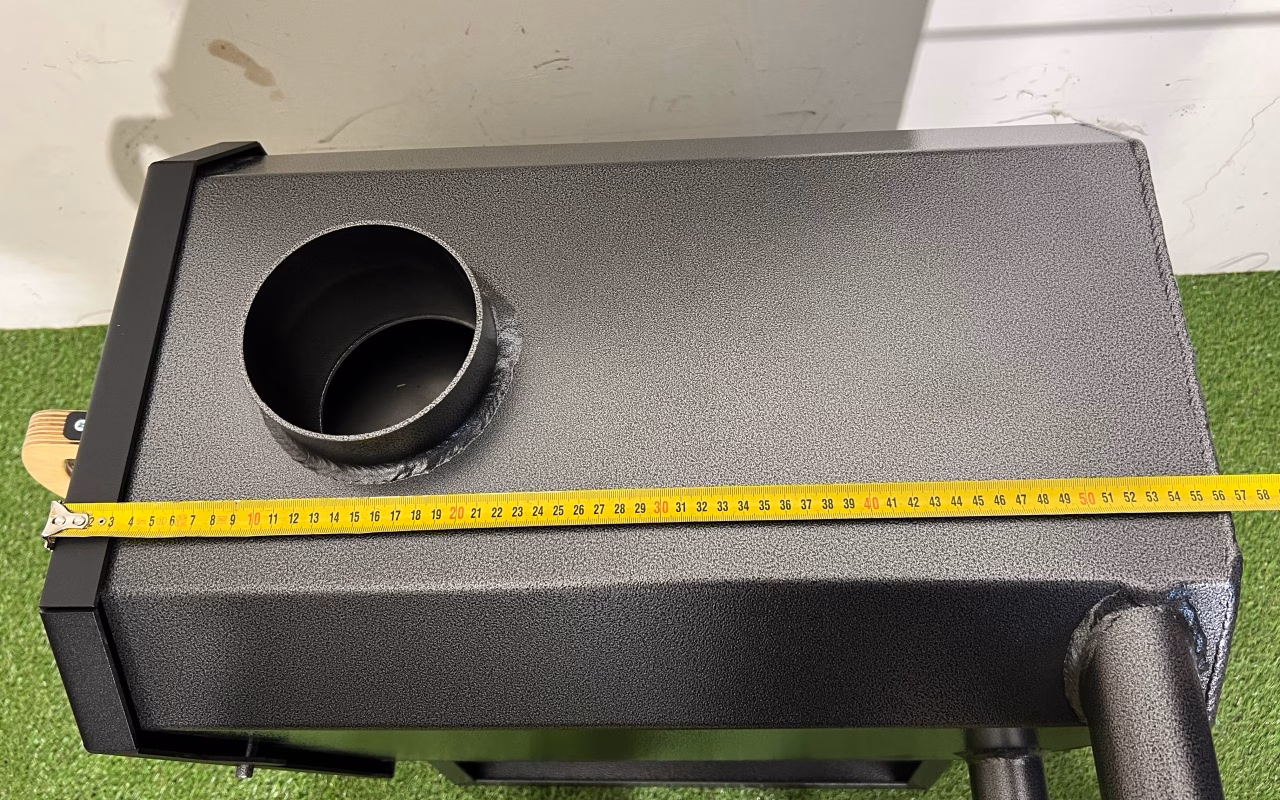

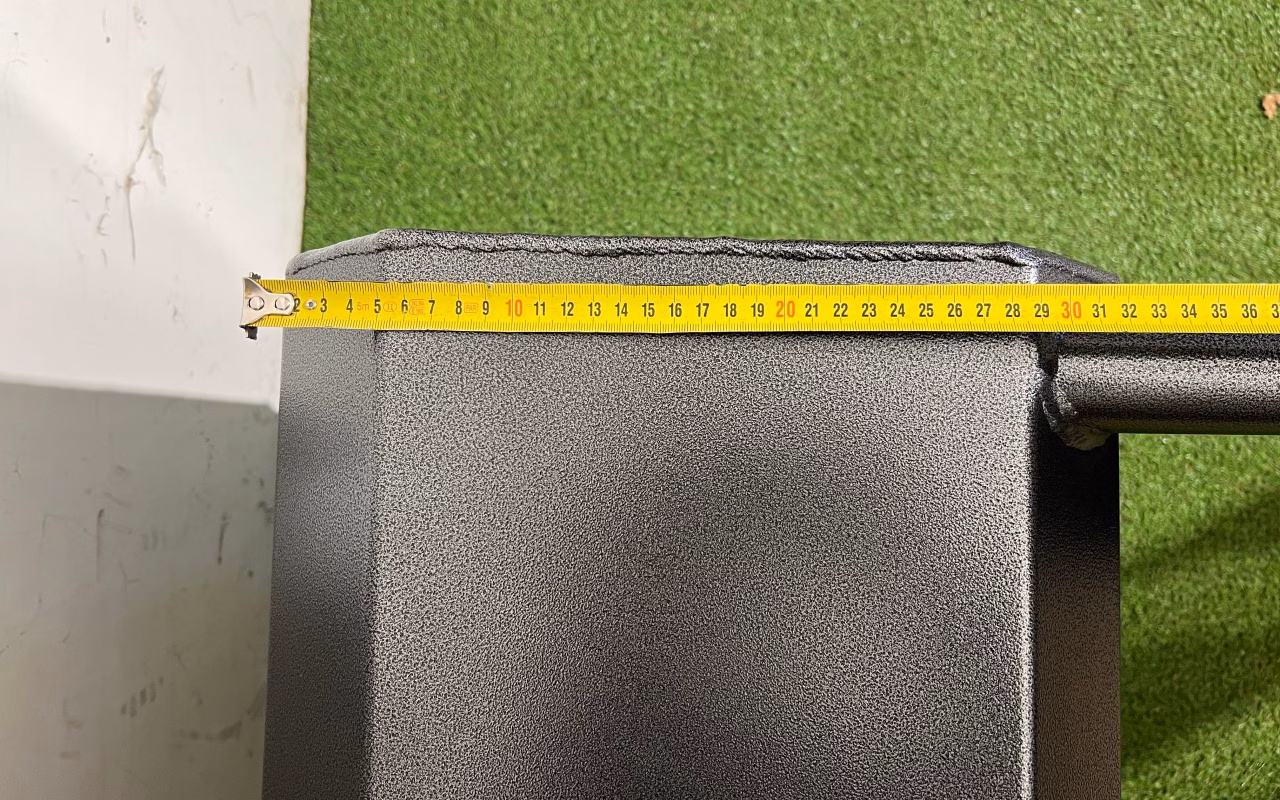

Width: 360 mm
Height: 660 mm
Length: 560 mm
Weight: 37 kg

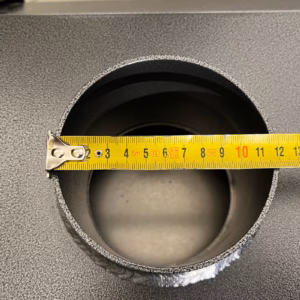

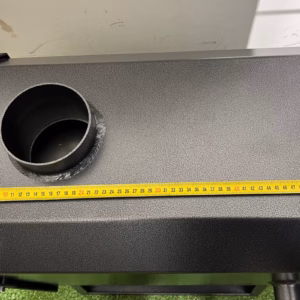

Chimney: 2000 mm (stainless steel)
Power: 35 kW

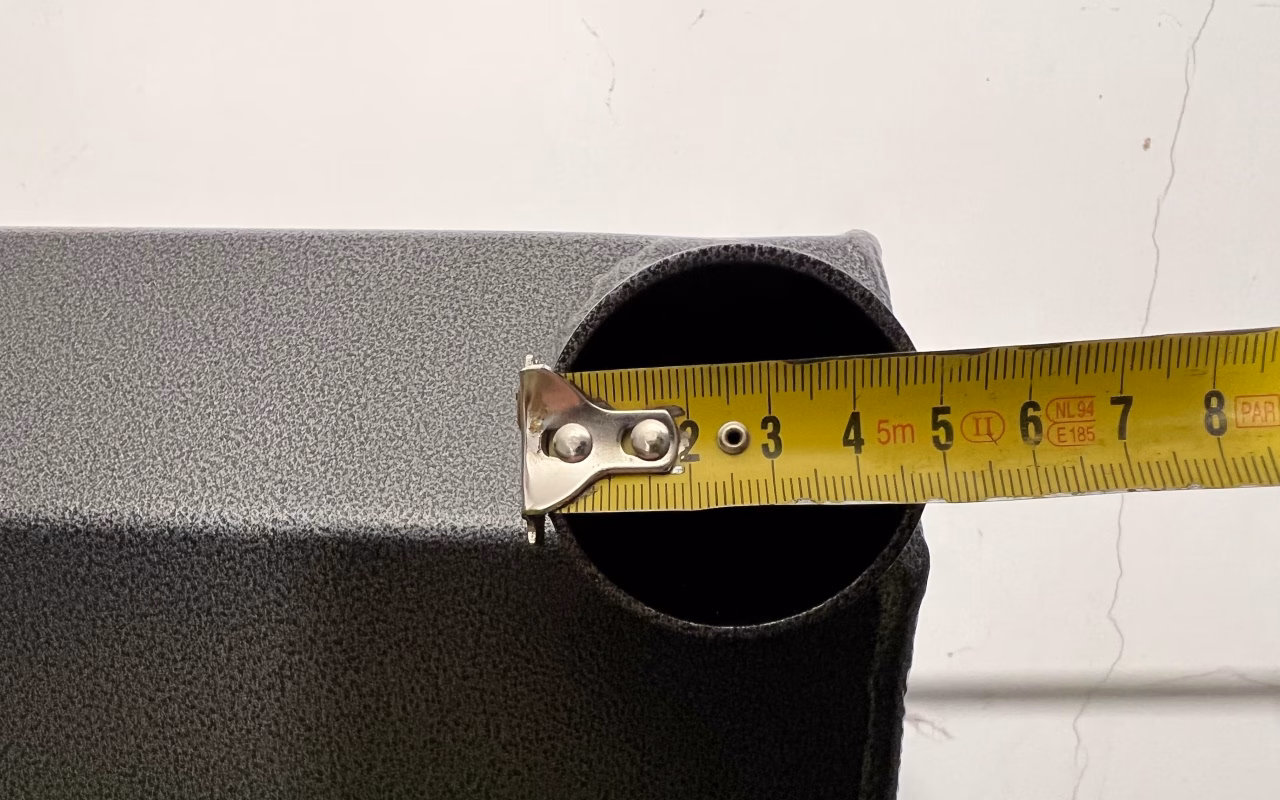

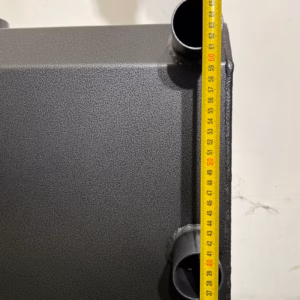

Diameter of connection tubes: 50 mm

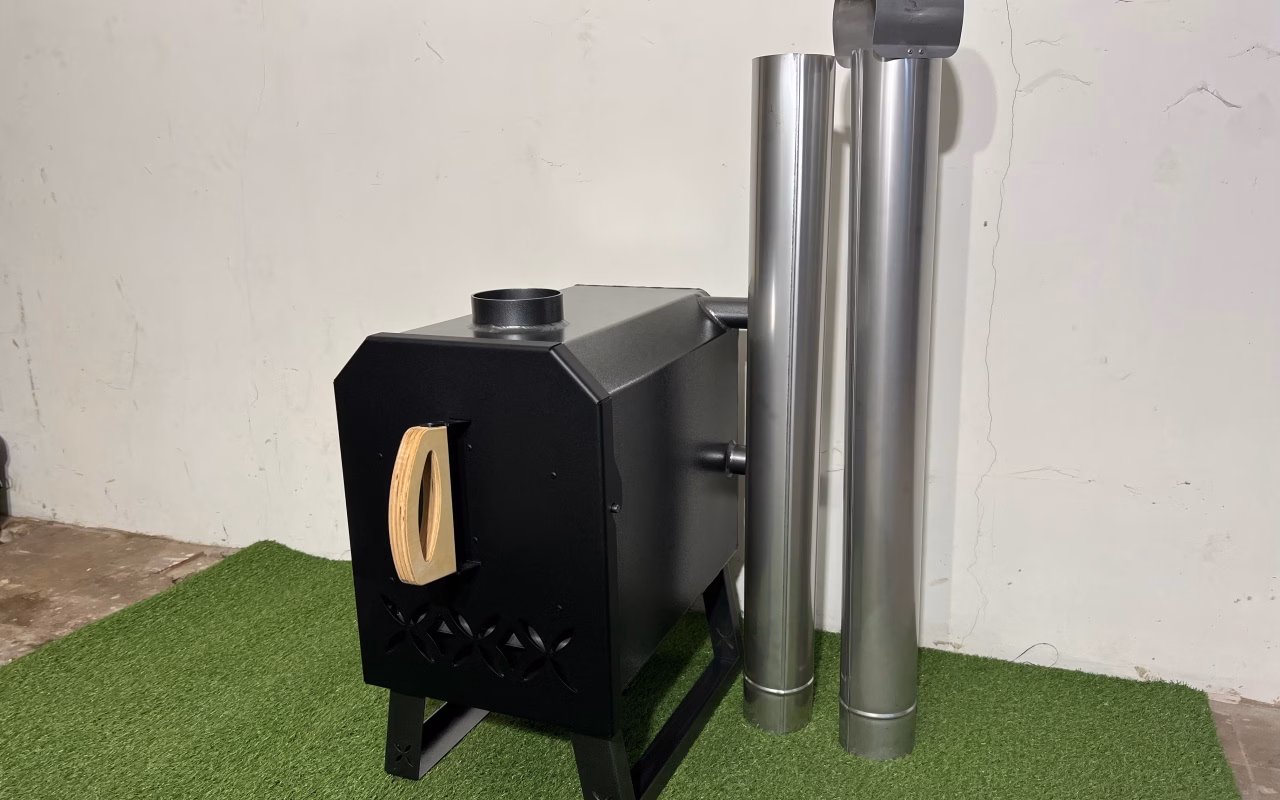

Complete set includes
- Salt water resistant hot tub heater (aluminum).

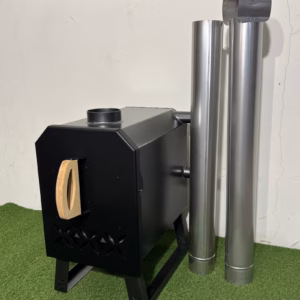

- 2m high module chimney that consists of two parts.

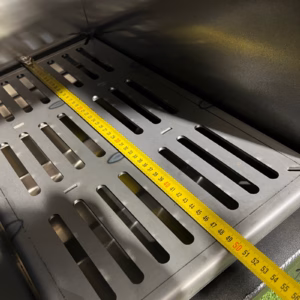

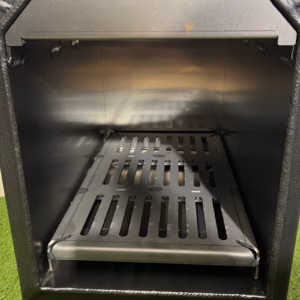

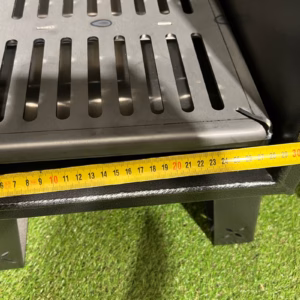

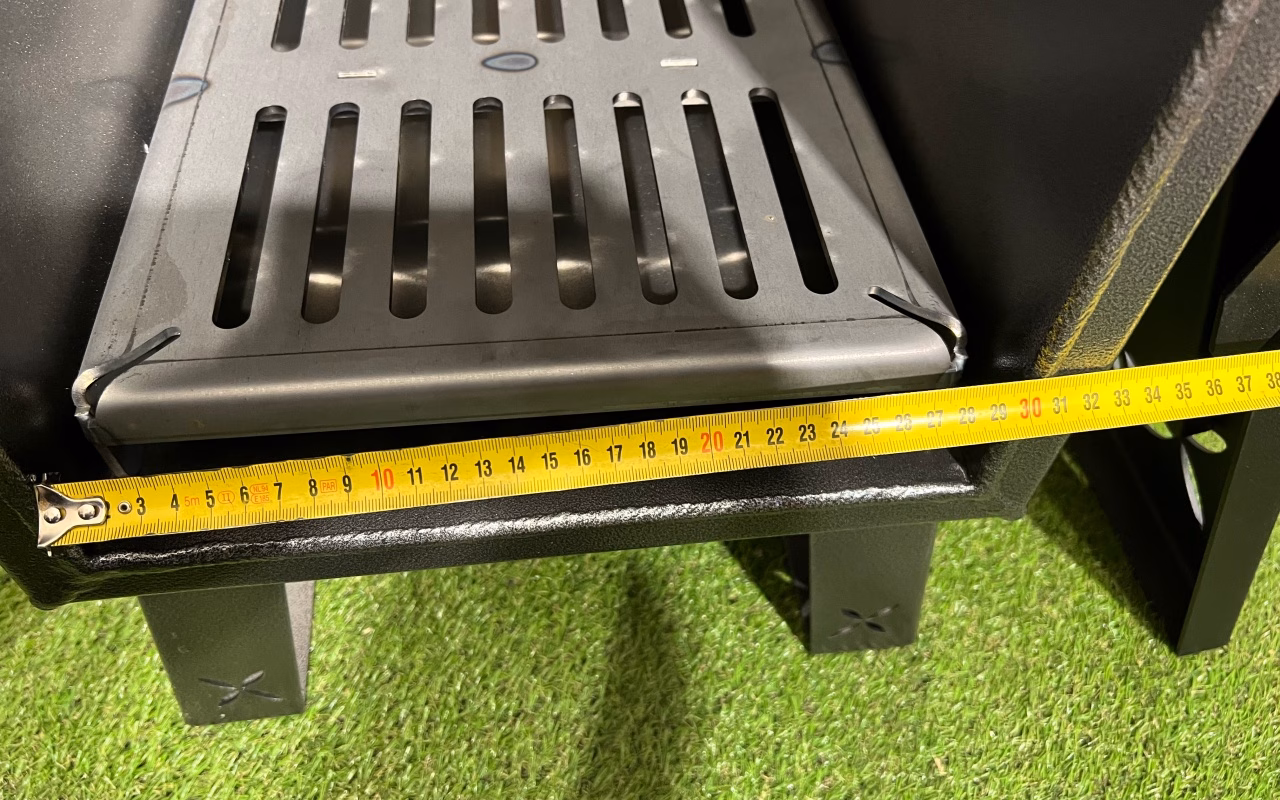

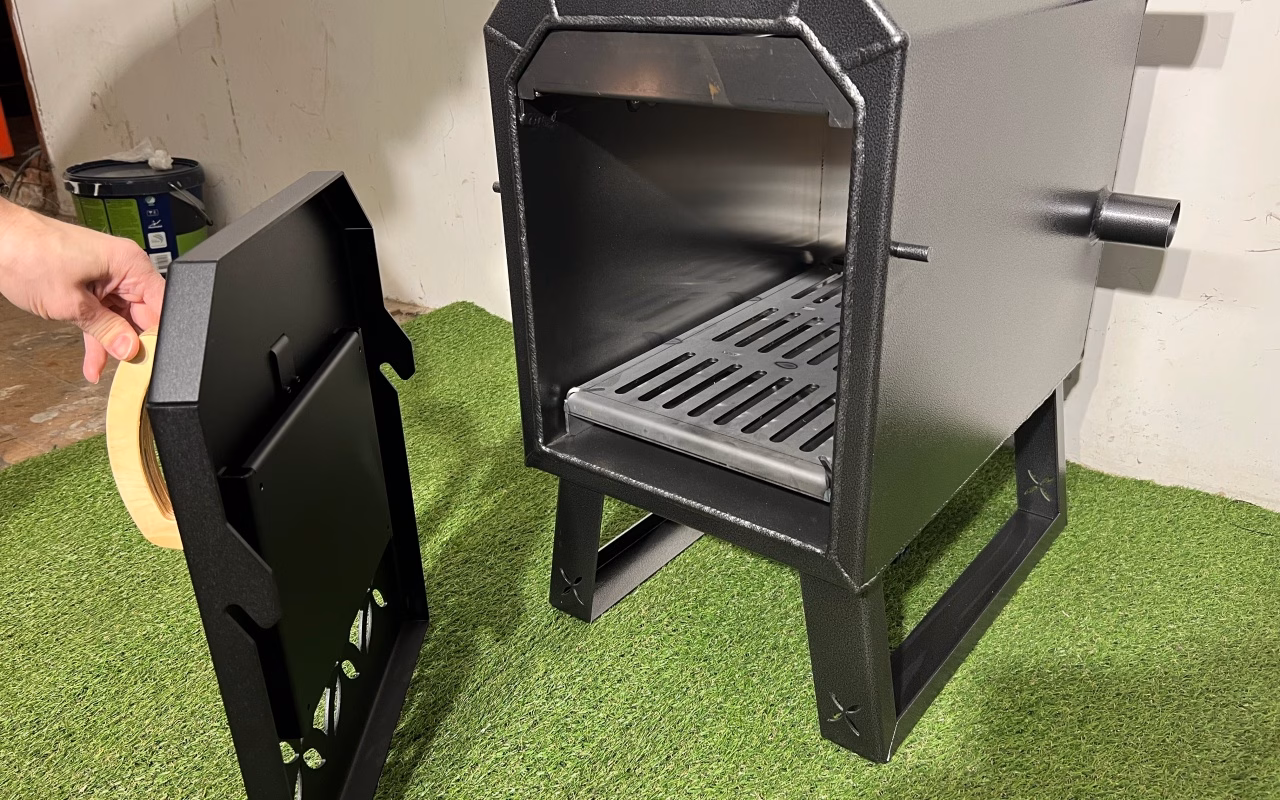

- Ash grill
- Door
- Drain plug for the external heater
- 50 mm aluminum connection pipes for the hot tub 2 pcs.
- Rubber connection hoses (200mm) 2 pcs.
- Pipe clamps 4 pcs.
This hot tub heater is made of high quality marine aluminum. The thermal conductivity of aluminum is about 15 times better than the stoves made of stainless steel and therefore our stoves are up to 30% more effective.

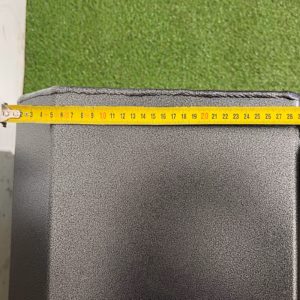

The material is 3 mm thick, which is two times more than in case of regular furnaces made of stainless steel. And of course, aluminum furnace is 30% lighter. Aluminum furnaces have longer useful life than furnaces made of stainless steel. The aluminium heaters retain their shape for a long time. Heaters made from thin stainless steel may become crooked.
High-quality MIG welding ensures the perfect end result. We check and test impermeability of all welded seams.
Important!

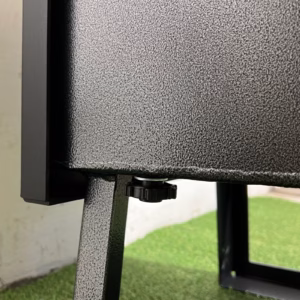

It´s strictly forbidden to start the heating before the hot tub is not filled with water. The pipes which connect the hot tub and the stove must be under the water before it´s allowed to start the heating. Otherwise the stove will be damaged. The stove has also a small drainage tap under it and in winter time when the temperature is already -1 degree you should empty your stove as well after bathing, otherwise the water may freeze and this may damage the stove. With our aluminum heaters we do not recommend to use the chlorine. Regarding other chemicals please make sure it is harmless to the marine aluminum.
